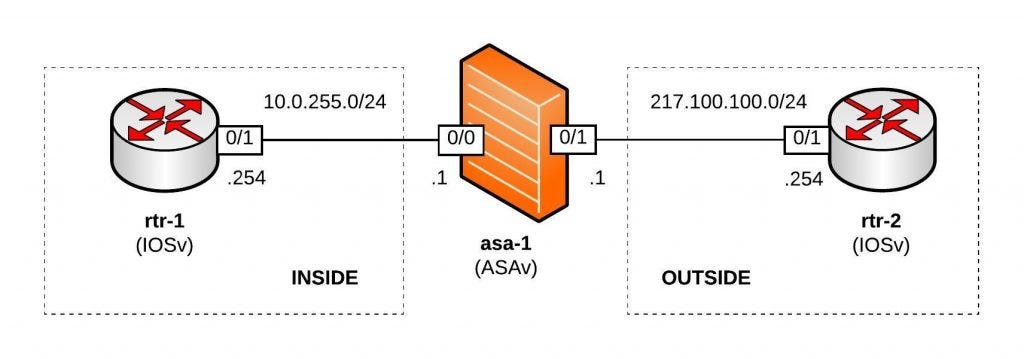

Ansible Playbook for Cisco ASAv Firewall Topology

---

hostname: asa-1
domain_name: lab.local

interfaces:
0/0:
alias: connection rtr-1 inside
nameif: inside
security_level: 100
address: 10.0.255.1
mask: 255.255.255.0

0/1:
alias: connection rtr-2 outside
nameif: outside
security_level: 0
address: 217.100.100.1
mask: 255.255.255.0

routes:
- route outside 0.0.0.0 0.0.0.0 217.100.100.254 1
  • Hostname: The task in main.yml uses the Ansible module asa_config and configures hostname and domain name.
  • Interfaces: This role uses the Ansible module asa_config to deploy the template interfaces.j2 to configure the interfaces. In the main.yml is a second task to enable the interfaces when the previous template applied the configuration.
  • Routing: Similar to the interfaces role and uses also the asa_config module to deploy the template routing.j2 for the static routes
  • Objects: The first task in main.yml loads the objects.yml from group_vars, the second task deploys the template objects.j2.
  • Object-Groups: Uses same tasks in main.yml and template object-groups.j2 like the objects role but the commands are slightly different.
  • Access-Lists: One of the more complicated roles I needed to work on, in the main.yml are multiple tasks to load variables like in the previous roles, then runs a task to clear access-lists if the variable “override_acl” from access-lists.yml group_vars is set to “true” otherwise it skips the next tasks. When the variable are set to true and the access-lists are cleared it then writes new access-lists using the Ansible module asa_acl and finishes with a task to assigning the newly created access-lists to the interfaces.
  • NAT: This role is again similar to the objects role using a task main.yml to load variable file and deploys the template nat.j2. The NAT role uses object nat and only works if you created the object before in the objects group_vars.
  • Policy-Framework: Multiple tasks in main.yml first clears global policy and policy maps and afterwards recreates them. Similar approach like the access lists to keep it consistent.
---

- hosts: asa-1

connection: local
user: vagrant
gather_facts: 'no'

roles:
- hostname
- interfaces
- routing
- objects
- object-groups
- access-lists
- nat
- policy-framework

--

--

--
